Hebei Kaixiang Electrical Technology Co., Ltd. is one of the leading manufacturers and suppliers of acl centralized water cooling load in China. If you're going to wholesale bulk advanced acl centralized water cooling load, welcome to get pricelist from our factory. All customized products are with high quality and competitive price.

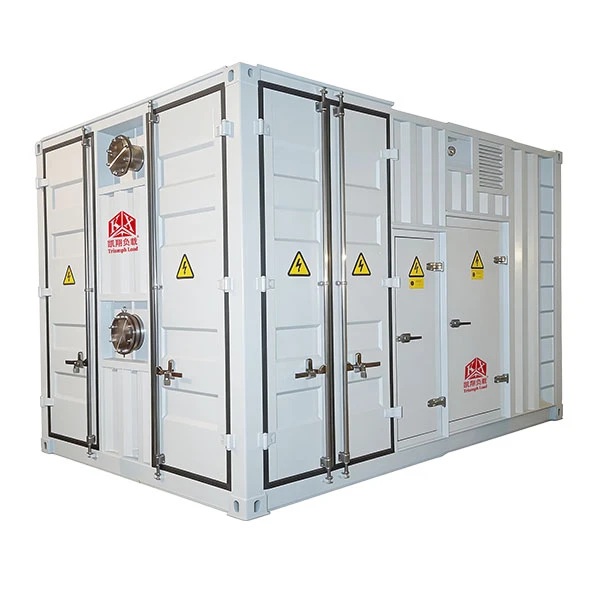

The ACL Centralized Liquid-Cooled Load Bank is a high-end power testing device designed for AI computing centers, supercomputing centers, and large data centers. It is mainly used for high-density computing server rooms, UPS, generator set acceptance, and system reliability verification. Departing from traditional air-cooling solutions, it adopts a centralized closed-loop liquid-cooling architecture, addressing pain points such as overheating instability, high noise, and inefficient heat dissipation of traditional loads. It fully simulates the power consumption and thermal conditions of computing equipment, precisely verifying the performance of power supply systems and liquid-cooling systems. With modular and intelligent design, it supports flexible expansion and long-term stable testing, meeting the acceptance requirements of high-density, low-carbon, and intelligent data center construction.
Product Features
Fully enclosed liquid-cooling circulation with no fan structure, providing uniform heat dissipation without heat accumulation. Silent operation with low cooling energy consumption, effectively reducing data center PUE.
01
Supports 0-100% power stepless smooth adjustment with uniform heat dissipation across the entire range, eliminating temperature drift at high parameters, enabling long-term full-load operation with reliable test data.
02
Highly integrated compact architecture supports standalone operation and parallel expansion of multiple units. Standard universal liquid-cooling and electrical interfaces are compatible with mainstream server room systems for easy deployment.
03
Supports both local and remote control modes, enabling operating condition monitoring, data recording, report generation, and fault alarms, with multiple safety protections.
04
Fully enclosed circuits are dustproof and moisture-proof, preventing component failures. No localized overheating risks, supporting 7×24 hours high-load continuous operation, adaptable to standard rack deployment.
05
Typical Technical Specifications
|
Power |
Step (kW) |
Dimensions |
Monitoring function |
|
ACL400V-100kW |
1,2,2,5,10,10,20,50 |
~1000mm*1000mm*1200mm (W×D×H) |
√ Liquid Flow √ Pressure. √ Temperature √ Leakage √ Other Alarms & Records |
|
ACL400V-150kW |
1,2,2,5,10,10,20,50,50 |
~1000mm*1000mm*1200mm (W×D×H) |
|
|
ACL400V-200kW |
1,2,2,5,10,10,20,50,100 |
~1000mm*1200mm*1500mm (W×D×H) |
|
|
ACL400V-250kW |
1,2,2,5,10,10,20,50,50,100 |
~1000mm*1200mm*1500mm (W×D×H) |
|
|
ACL400V-500kW |
5,5,10,10,20,50,100,100,200 |
~1200mm*1800mm*2000mm (W×D×H) |
|
|
ACL400V-600kW |
5,5,10,10,20,50,100,200,200 |
~1200mm*1800mm*2000mm (W×D×H) |
|
|
ACL400V-1000kW |
5,5,10,10,20,50,100,200x4 |
~1500mm*1800mm*2000mm (W×D×H) |
|
|
ACL400V-2000kW |
5,5,10,10,20,50,100,200x9 |
~4000mm*2438mm*2591mm (W×D×H) |
|
|
ACL400V-3000kW |
5,5,10,10,20,50,100,200x14 |
~4000mm*2438mm*2591mm (W×D×H) |
Specifications and functions can be customized according to user requirements
