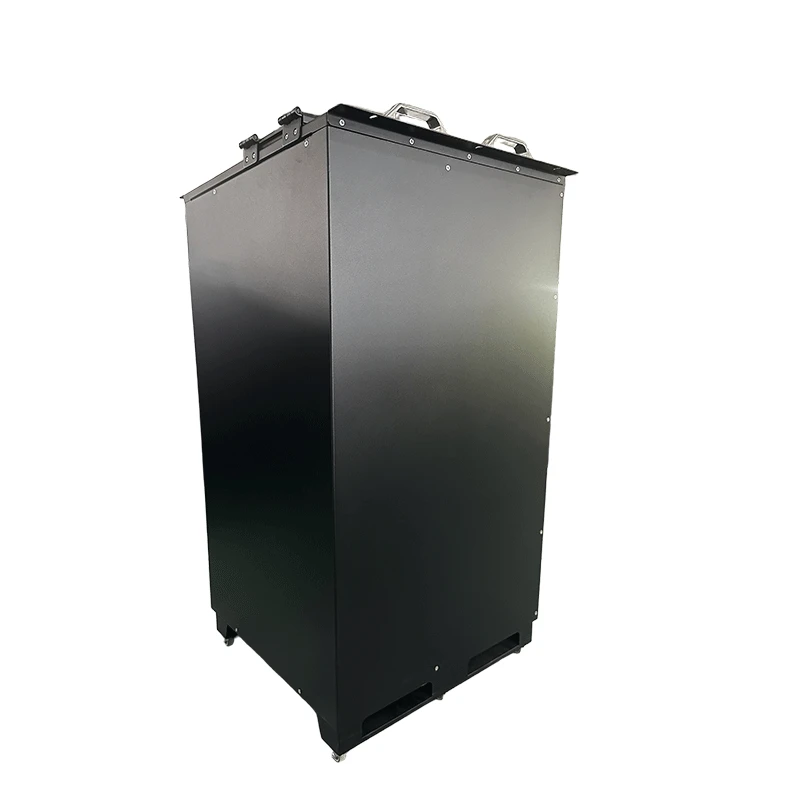

With the advent of Internet of everything era, the energy consumption of data centers has become increasingly prominent. In order to achieve the goal of carbon neutrality, green data centers using liquid cooling technology have received more and more attention and applications. The 60kW liquid cooled load bank developed by Kaixiang Technology for green data center greatly reduces the power consumption, has the advantage s of low noise,fast heat conduction ,constant power,AC and DC applications for all-purpose,etc.,proiding users with a more energy-saving and efficient solution.
Technical Parameters
|
Technical Parameters |
|
|
Rated Voltage |
Three-phase five-wire: AC415V/50Hz; |
|
Rated power |
60kW |
|
Load Step |
A:1kW,2kW,4kW,8kW,15kW; B:1kW,2kW,4kW,8kW,15kW; |
|
Load full load accuracy |
≤±5% |
|
Display accuracy |
Inlet and outlet water temperature measurement accuracy: ±0.5℃; The accuracy of the flowmeter is 0.5 class. |
|
Main circuit power interface |
A road 5P/63A public socket, B road 5P/63A public socket. |
|
Loading method |
The panel is equipped with a gear switch (miniature circuit breaker) for manual loading. |
|
Control power supply |
Select the switch to power the test power interface A or B. Note: Do not switch the working power during operation to avoid equipment damage . |
|
Insulation class |
AC1000V, insulation resistance greater than or equal to ≥10MΩ |
|
Inlet water temperature |
2~80℃ |
|
Water circuit interface |
It is equipped with 1 liquid inlet and 1 liquid return port, using clamp-type quick couplings. Pipe diameter: DN50, 64 mm chuck, and the pipeline is equipped with an exhaust valve. |
|
Air tightness |
No leakage for 2 hours under 1Mpa pressure |
|
Cooling method |
PG25 coolant |
|
reference water flow |
4-40m³/h The equipment pipeline is equipped with an electric control valve for flow rate and resistance adjustment. |
|
insulation grade |
F |
|
Class of protection |
IP23 |
|
Duty Cycle |
Continuous |
|
Pipe material |
All pipes are stainless steel 304. |
|
Over-temperature protection |
The load is equipped with liquid inlet and outlet temperature monitoring. When the temperature is abnormal, an alarm will be triggered and the load will be unloaded (upper limit alarm for liquid inlet and outlet temperature, adjustable value (default 80℃)). |
|
Overload protection |
During the operation of the load, the power of the entire machine is monitored. When the power exceeds the set value, an alarm prompt is given and the load is unloaded. The alarm value is adjustable. |
|
Short-circuit protection |
When there is a short circuit or excessive current, the gear circuit breaker trips for protection to prevent damage to the equipment. |
|
Grounding protection |
The input port is grounded and connected to the chassis. The chassis box has a grounding position for users to ground. |
|
Leakage protection |
The load monitors the leakage status of the load waterway in real time. When leakage occurs, it will give an audible and visual alarm prompt and unload. |
|
Protective switch |
Some protection functions are equipped with switches. When false alarms occur or there are special needs, the corresponding protection functions can be temporarily turned off. |
|
Transportation |
The front panel has a handle and the bottom has casters for easy transportation. |
|
Chassis size |
Volume: 11U, approximately 431mm*489mm*850mm (width * height * depth) |
|
Case color |
Black |
|
Human-machine interface and display |
Configure a local touch screen with display of inlet and outlet liquid temperatures; It is equipped with power, current, voltage display, temperature and other data display. Curves and historical data can be viewed locally. Data can be exported to a USB flash drive. The exported data can be used to generate curves on the upper computer and printed. |
Main Features
Ultra-Silence
Using liquid cooling instead of fans.
Without any noise,create a quiet and comfortable working environment.
Cooling Fast
Heat Conduction Ability:25 times than air;
Component Consumption: lower than forced air type,with longer lifetime;
Power Consumption:ave 30%-50%.
Simulate Real Conditions
More suitable for liquid-cooled data center,simulate & verify the actual heating, cooling effect ,load capacity and circuit reliability of servers in computer rooms.
Expansibility
Multiple rack-type modules in parallel to form a cabinet,and multiple cabinets can be connected in parallel to form any power.
Use standard interface between modules,convenient to expand and upgrade.
AC & DC
Adopt both AC and DC power supply with widely applicability;
Through 1kW stepping resolution and adjustable controls,to meet all types of the power tests for a variety of forms,diffrent power of computer rooms.
Status & Mornitor
LCD screen will display inlet and outlet water pressure & temperature,flow rate,tank temperature,alarm and so on;
And control the dynamic work in real time.
