When testing high-power electrical equipment (data centers, energy storage PCS, diesel generator sets, ultra-fast charging piles, etc.), air-cooled loads often suffer from high noise, poor heat dissipation, and difficult expansion-especially challenging for long-term indoor operation.

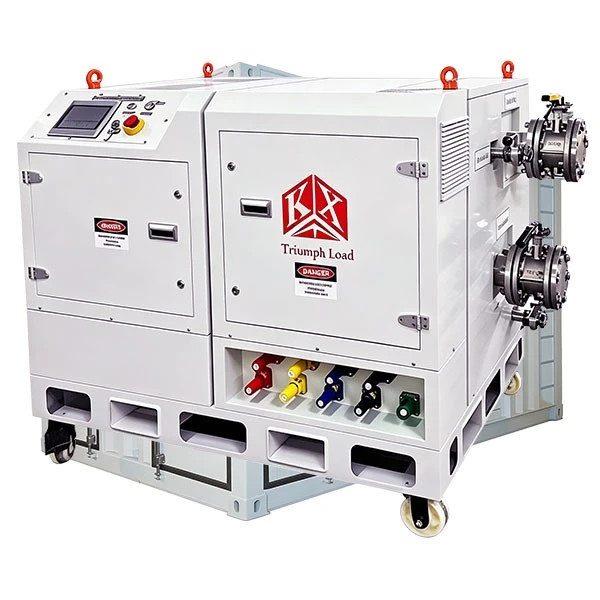

Our 600kW modular centralized liquid-cooled load is purpose-built for these scenarios-a single unit covers 600kW, and two units in parallel can easily expand to 1.2MW, flexibly matching all needs from small-power single testing to MW-level parallel operation.
Product Features
Installation & Deployment-Flexible & Space-Saving
Centralized liquid-cooling architecture occupies far less floor space than air-cooled equipment of equivalent power, suitable for indoor enclosed spaces such as data centers and energy storage stations. Modular power units allow expansion by simply adding modules without infrastructure modifications-fast on-site parallel connection, plug-and-use.
Stable Operation
Long-term full-load operation without derating, with better PUE control. The whole unit is designed for continuous load conditions with minimal load fluctuation, making test data more reliable and helping certifications pass in a single run.
Maintenance & Overhaul-Simple & Low-Cost
Modular structure allows faulty units to be replaced independently without whole-system shutdown, reducing maintenance time. Centralized liquid-cooling piping is simple; routine maintenance only requires regular checks, significantly reducing O&M staff workload and lowering total cost of ownership.
Commercial Value-Multi-Purpose, Rapid Response
Covers diverse scenarios such as data centers and energy storage, with a single device meeting multiple testing tasks. Standardized mass production ensures stable supply and high cost-performance, helping you seize the initiative in the high-power testing market.
Typical Technical Specifications
|
KACL415V-600kW Centralized Liquid Cooling Load |
|
|
Rated Voltage |
AC Three-phase four-wire + Ground 415V, 50/60Hz |
|
Rated Power |
605kW |
|
Load Steps |
Resistive Load: 5, 10, 20, 20, 50, 100, 200, 200kW |
|
Power Factor |
1 |
|
Load Accuracy (Full Load) |
±3% |
|
Main Circuit Power Interface |
Load Power Input - Fast Socket (Star Connection); Control Power Input - Industrial Connector Single-phase 3P16A Socket. |
|
Working Power Voltage |
External AC Single-phase 220V, 50/60Hz |
|
Loading Method |
Control Method 1: HMI Touch Screen Control, Manual Loading, Parameter Modification via Touch Screen; Control Method 2: Host Computer Software Control. |
|
Communication Method |
RJ45,RS485,WIFI |
|
Insulation Level |
AC1000V, Insulation Resistance ≥10MΩ |
|
Water Circuit Interface |
1: Inlet/Outlet Pipe Diameter: DN100, Flange Connection; 2: Drain Pipe Diameter: DN25 Quick Connector; 3: Manual Exhaust Valve Pipe Diameter: DN25 Quick Connector. |
|
Cooling Method |
Pure Water, Ethylene Glycol, Propylene Glycol |
|
Protection Rating |
IP21; Water-Electricity Separation, Waterproof Connectors for Electrical Interfaces |
|
Cabinet Dimensions |
Approx. 1500mm×1150mm×1112mm (W×D×H); Note: Height excludes casters and lifting rings, width excludes valves and protruding pipe components. Subject to final design. |
|
Weight |
Approx. 1000kg |
Specifications and functions can be customized according to user requirements
