Hebei Kaixiang Electrical Technology Co., Ltd. is one of the leading manufacturers and suppliers of ac 6.3kv 6000kw high voltage load bank in China. If you're going to wholesale bulk advanced ac 6.3kv 6000kw high voltage load bank, welcome to get pricelist from our factory. All customized products are with high quality and competitive price.

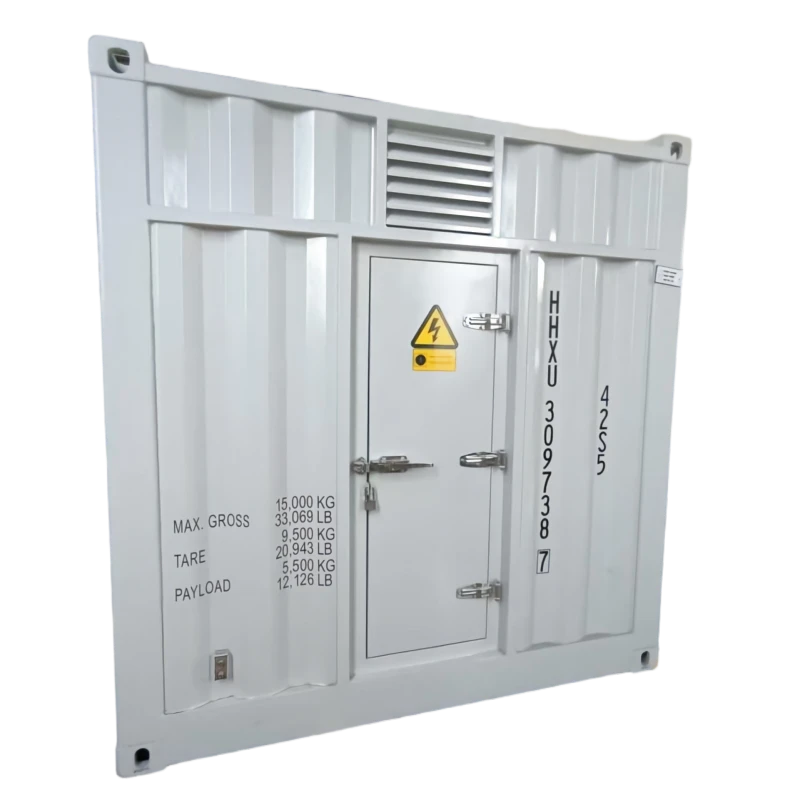

Housed in a standard 40-foot container-type enclosure with IP55 protection, this load bank is the definitive testing solution for large diesel and gas generator sets, utility power systems, oil & gas installations, and industrial power systems in power plants, marine vessels, offshore platforms, data centers, and heavy industrial facilities.
The AC 6.3kV 6000kW High-Voltage Load Bank applies a precisely controllable pure resistive load directly to the 6.3 kV source under test. Special alloy power resistors - engineered for high-temperature resistance, high heat dissipation capability, high thermal stability, and no naked light - absorb the electrical energy and convert it into heat. A forced-air cooling system with side air intake and side air outlet (or horizontal intake with upward exhaust) continuously dissipates the heat via multiple heavy-duty axial fans, enabling true continuous-duty operation even under full 6000 kW load at 6.3 kV.
Technical Parameters
|
System Parameters |
|
|
Rated Voltage/Frequency |
AC Three-Phase Three-Wire 6.3kV/50Hz |
|
Maximum Load Power |
Resistive Load：6000kW. |
|
Load Step |
Resistive Load: Divided into 3 taps as follows: 1000kW, 2000kW, 3000kW; Note: When the input voltage is lower than the rated voltage, the tap power of the load bank changes in accordance with Ohm's Law. |
|
Power Factor |
1 |
|
Load Accuracy (Whole Machine) |
±3% |
|
Display precision |
Display precision class 0.5 |
|
Control Power Supply |
External AC Three-Phase Five-Wire (L1/L2/L3/N/PE) 400V, 50Hz |
|
Wire Connection |
Load Power Input - High-Voltage Terminal Blocks (Star Connection) Control Power Input - Terminal Block Control Dry Contacts - Terminal Block Alarm Output Dry Contacts - Terminal Block |
|
External Communication Interface |
RS485(Spare for Instrument Lead-Out) |
|
Insulation Class |
F Class |
|
Maximum Protection Class |
Control Section: IP55 Alloy Resistor Power Dissipation Chamber (During Operation): IP21 |
|
Working Mode |
Continuous Working |
|
Cooling Method |
Forced Air Cooling, with air intake at the bottom and air outlet at the top (air duct to be installed by the customer). |
|
Cabinet Structure |
Container Enclosure: The container is equipped with a personnel access and maintenance door (with a lock), a ladder reaching the top, air inlets and outlets, and an internal protective net to prevent foreign objects from entering. |
|
Transportation |
Lifting: The top of the cabinet is equipped with load-bearing lifting rings, which meet the lifting and transportation requirements. |
|
Cabinet Color |
RAL7047 |
|
Cabinet Dimension |
About 12192mm×2438mm×2591mm(L×W×H); |
|
Weight |
About 14000kg |
|
Operating Environment Parameter |
|
|
Work Place |
Outdoor |
|
Work Temperature |
-30℃～+50℃ |
|
Relative Humidity |
≤95% |
|
Altitude |
≤2500 M |
|
Atmospheric Pressure |
86～106kPa |
|
Reserved Distance |
To facilitate personnel access, there shall be no obstacles within 3 meters in front of the control room, and no obstacles within 2 meters in front of the maintenance room. |
|
Safe Working Distance |
An isolation barrier shall be installed at least 1.5 meters away from the load bank. No unauthorized personnel shall be within 3-5 meters of the load bank when it is in operation. |
Product Features&Advantages
Seamless Control & Integration
Dry Contact Control: Connects directly to customer terminals (PLC, genset controllers, BMS, etc.) via dry contact terminals, enabling effortless integration for remote, automated, and centralized load management.
Comprehensive Local Monitoring
Full-Parameter Display: Local measuring instruments provide real-time visibility of voltage, current, active power, reactive power, apparent power, power factor, and frequency-delivering complete on-site diagnostics without requiring an external PC or software.
Operator-Centric Convenience
Built-In Utilities: The control panel features an integrated lighting switch and a reserved single-phase AC power socket (for laptops or temporary tools), streamlining on-site testing and reducing field setup time.
Enhanced Safety & Protection
Emergency Stop Signaling: Outputs a set of NO/NC (normally open/normally closed) dry contact signals to the XT4 terminal, allowing remote monitoring of E-stop status and seamless integration with external safety interlock systems.
Cabinet Grounding Protection: Equipped with a dedicated grounding terminal to prevent cabinet electrification and eliminate electric shock hazards, ensuring maximum operator safety during operation.
